“Single seal” and “double seal” sound self-explanatory, but suppliers do not always use the terms in the same way. They may refer to the factory-sealed sides of a pouch, two parallel seals made by the operator, or a particular bag construction.
That makes a product photo, dimension drawing, and approved sample more useful than the label alone. Before comparing prices, ask the supplier exactly where each seal sits and which seal is created during your packing process.
Start With the Pouch Layout
A pre-made pouch normally arrives with an open mouth and factory-closed edges. A roll or tube needs the operator to create a pouch length and seal one end before filling it, then close the filled end during vacuum sealing.
Some pouch formats have one factory seam and a folded edge; others have two factory side seals. Separately, a packing operation may deliberately run two parallel seals across the open mouth. These are different construction choices, even though they may all be described as “double seal” in a product listing.
That distinction matters for rolls as well. A roll lets the operator create a pouch length, seal one end, fill it, and make the final closing seal. A pre-made pouch arrives with its factory edges already formed. Neither arrangement should be described as inherently safer without identifying which seam or seal line is being discussed.
Request a simple drawing that shows:
- pouch width, length, and open side;
- folded edges and factory-sealed edges;
- the width and position of any parallel seal lines;
- film structure and intended machine type; and
- the product and storage conditions being considered.
What a Second Parallel Seal Can Do
Two parallel operator seals can provide additional margin where a programme has a specific need for it, such as a wet product, repeated handling, or an internal quality requirement. It may also help a buyer distinguish the intended sealing zone from the rest of the pouch.
It does not automatically compensate for an unsuitable pouch, contamination in the sealing area, poor machine settings, or a damaged bag. If both seals are made under the same poor conditions, adding a second line may not solve the underlying issue.
The decision should come from the actual product risk and the required pack result, not a general assumption that two lines are always better than one.
When Double Seal Construction Matters
An additional seal line or a different pouch construction can be worth evaluating when the cost of a pack failure is unusually high, when the product is liquid or messy at the mouth, or when bags will receive repeated handling during storage and distribution. For example:
- High-value products: expensive proteins, specialty foods, or other products where a rejected pack creates material loss and a customer-service problem.
- Liquid or wet contents: the loading method and seal-zone control need special attention; two correctly formed, parallel closing seals can provide additional margin when the programme calls for them.
- Longer storage or freezer handling: the relevant check is whether the specified pouch and seal arrangement still perform after the expected handling and storage conditions.
- Sharp or irregular contents: this is not only a seal question. The film and pouch shape also need a puncture-focused test away from the seal line.
- Commercial or institutional programmes: an internal quality system may require a defined seal layout, a retained sample, or a documented process for the actual product.
For a frozen, chilled, retail, or foodservice programme, the relevant test point may be after stacking, transport, or a defined storage period rather than immediately after sealing. This is where a sample trial is more valuable than a generic promise of “extra security.”
The Redundancy Factor
Where two parallel closing seals are specified and correctly formed, the second line can act as added redundancy: if one seal line is compromised in handling, the other may still help maintain the package. That is the practical reason a buyer may request it for a higher-risk programme.
Redundancy is not magic. Both lines still depend on a compatible pouch, a clean seal area, suitable heat and pressure, and adequate cooling. If the bag mouth is contaminated or the machine is set incorrectly, two poor seals do not create one good package. The value of double sealing rises with the consequence of a failure and the consistency of the controlled process.
Seal Quality Comes First

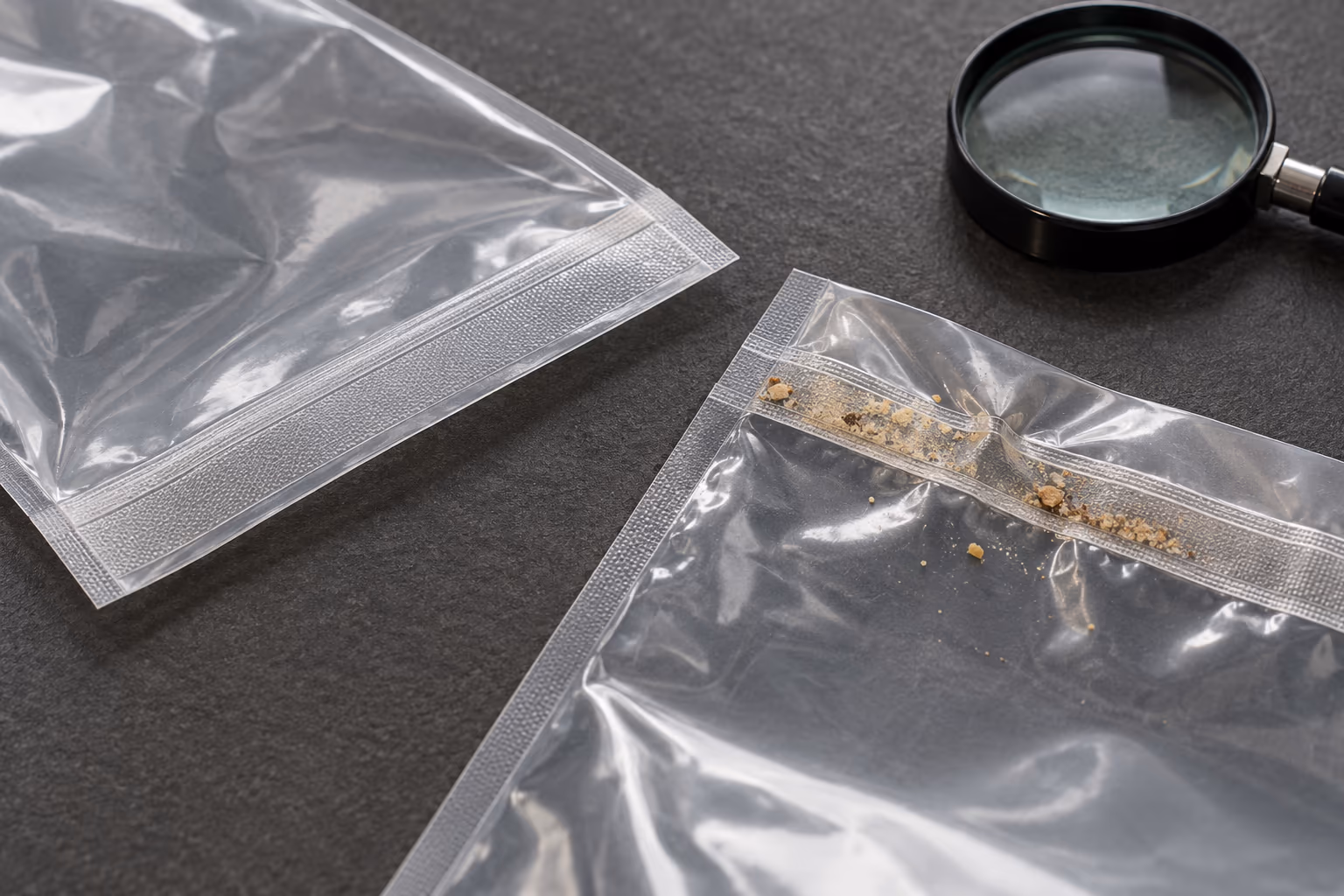

For any pouch, look for a continuous, even seal without visible channels, wrinkles, burnt areas, or product residue. Evaluate it after the pouch has cooled and after normal handling. A visual check is useful, but it should be supported by the test method and acceptance rule agreed for the programme where a formal requirement exists.
For example, a product with sharp corners may need a puncture-focused pouch test rather than another seal line. A liquid product may need a different loading method or seal-zone control. A retail pack may need transport and stacking checks. Vacuum bag seal failure causes covers common reasons a seal can fail.
For a quick incoming or line check, fill and seal a representative pouch, allow it to cool, and inspect the whole seal width under normal handling. If a peel or burst test is part of the quality programme, use the agreed method, sample size, and acceptance rule. Do not rely on an informal pull test as a substitute for a required validated test, and do not change the test condition between suppliers without recording it.
Cost and Process Trade-Offs
Extra pouch construction, a second sealing operation, or a wider sealing area can change material use, production time, and price. The amount varies by bag size, film, order quantity, printing, equipment, and supplier. It is better to request like-for-like quotations with a drawing than to assume every “double seal” pouch carries the same premium.
There can also be an operating trade-off. Making two parallel seals may take more cycle time and needs enough flat, clean bag margin for both lines. A pre-made pouch can reduce preparation steps, while a roll can reduce material waste for variable product lengths. The suitable option is the one that gives a repeatable pack within the actual workflow.
Rolls and Pre-Made Bags Solve Different Problems
Vacuum seal rolls allow the operator to make a custom length, which is useful for variable products. They add an extra preparation step and place more responsibility on the operator to make the first seal correctly.
Pre-made pouches reduce that preparation and keep the factory pouch dimensions consistent. They are often the better choice when the product and presentation are standardised. Neither format is inherently more reliable; the relevant question is whether it fits the machine, product, and work routine.
For fixed-size retail packs, pre-made transparent vacuum bags or printed pouches can make presentation and labelling more consistent. For a changing product size, a roll may be more practical. In both cases, approve the construction and the seal result rather than selecting solely from the terms “single” or “double.”
How to Evaluate a Supplier Sample
Test samples with the real machine and product. Keep the machine setting, loading method, and pouch version recorded. Then check the pack at the point when it matters: after cooling, after storage, or after the handling route it will actually take.
For a repeat order, keep the approved pouch drawing, sample, sealing instructions, and packaging requirement together. This makes a later change in pouch construction or seal layout much easier to identify.
