Diamond and dotted vacuum bags are often presented as competing technologies. In practice, both are embossed patterns used to keep an air path open in a bag for a compatible external-suction sealer. Neither pattern is automatically the premium choice.
The useful comparison is not the shape alone. It is whether the bag evacuates consistently, leaves a clean sealing area, and holds up with the product, bag size, and machine in use. If the first decision is still smooth versus embossed film, begin with embossed vs smooth vacuum bags.
What the Pattern Does
Embossing creates shallow channels in the film. When an external sealer draws air from the open end of the pouch, those channels help prevent the two film surfaces from closing together too early. Air can then move from the filled part of the bag toward the machine.
A diamond pattern uses intersecting diagonal channels. A dotted, grid, or square pattern uses repeated raised points or crossing lines. Names vary between suppliers, so a product photo or approved sample is more reliable than the name alone.
Both patterns can work well. The depth, continuity, film stiffness, and width of the untextured sealing margin are usually more consequential than whether the channels look like diamonds or dots.
Channel Efficiency: The Core Difference
Pattern geometry can influence the path air takes. Diagonal channels can offer several routes toward a centred or off-centre suction point, while a grid pattern may provide straighter routes in particular directions. That can become more noticeable with a long pouch, a wide product, or a slower external machine. It can also affect how the pouch lies at the mouth and how easily liquid, powder, or crumbs reach the seal area.
Those are reasons to compare samples, not reasons to assume one pattern will deliver a particular vacuum level. A result seen with a small dry-food pouch may not transfer to a wider bag, a wet product, or a different machine.
Ask the supplier for samples in the intended width and length. Run them with the real product and normal loading method, then compare:
- evacuation time and the consistency of the finished pack;
- whether the product or moisture reaches the sealing margin;
- seal appearance after cooling and ordinary handling;
- channel appearance after the pouch has been stored, packed, or flexed; and
- carton packing and print requirements, if this is a retail program.
When the Choice Deserves More Attention
For a short, dry product in a standard-size pouch, either pattern may give a satisfactory result. The decision deserves more testing when the air has a longer distance to travel or when an inconsistent pack would interrupt an operation. Typical examples include:
- large or unusually wide bags;
- products that sit across much of the pouch width;
- soft foods, powders, liquids, or marinades that can move toward the mouth;
- an external sealer with a modest pump flow or a short vacuum programme; and
- high-volume work where a small difference in repeatability is multiplied across many cycles.
In these cases, compare the same bag size and the same loading method. Do not compare one sample with a dry filler and another with the actual product, or change the bag, vacuum setting, and sealing time in the same trial. It becomes impossible to tell which factor caused the difference.
Material Considerations
An attractive, deep pattern does not by itself prove barrier, puncture resistance, or seal strength. Those properties depend on the film structure, gauge, sealant layer, pouch construction, and the application.

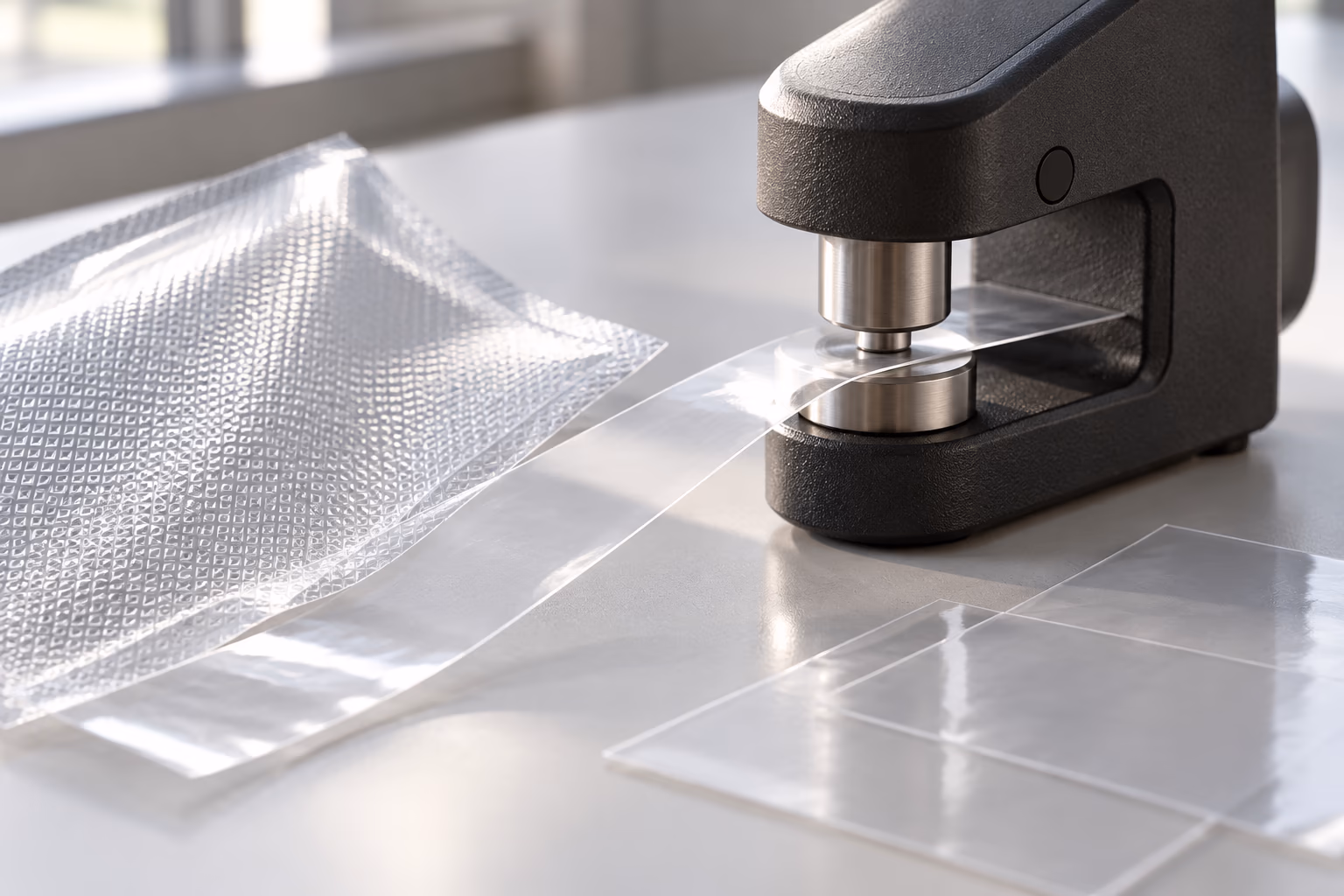

For a sharp or bone-in product, the puncture risk may matter more than channel shape. For a long retail route, the required barrier and pack appearance may matter more. For an external sealer, compatibility and a repeatable air path are the starting point. Vacuum bag thickness and performance explains why a single thickness number is also not enough to judge the finished pouch.
Film thickness can change how an embossed pattern behaves. A very flexible film may show channel deformation sooner under handling or load; a heavier structure may hold its texture differently and need a different sealing programme. Neither observation identifies a better pattern on its own. The supplier should provide the actual film construction, and the buyer should approve the result on the intended machine.
Industry Preferences and Why
Some markets have a stronger supply preference for diamond, grid, or dotted textures. That is often a matter of established tooling, local availability, or familiar appearance rather than proof of universal technical superiority. Treat proprietary claims in the same way: ask for a sample and a test condition rather than relying on the pattern name.
Seal Bar Interaction
The seal should be made on a clean, suitable part of the pouch. A heavily textured area at the mouth, contamination from the product, or an insufficient flat margin can make a good-looking bag difficult to seal consistently.
During a sample run, inspect the sealed strip rather than relying only on how tight the pack feels. Keep a filled sample for the time and handling route that reflects normal use. If the result changes after cooling, stacking, transport, or freezing, record the machine setting and pouch version before changing several variables at once.
Pattern Durability in Storage
The embossed surface also needs to stay usable until the bag is packed. Store cartons flat, dry, and away from excessive heat or sustained weight that could distort the pouch. Lighter or more flexible film structures can need particular attention. If bags are held for a long period, include a pack trial from retained stock in the incoming check instead of assuming the original sample still represents the stored inventory.
When Pattern Type Matters More
Pattern choice deserves a closer comparison for very large bags, products that block a broad section of the pouch, or a machine with a slower evacuation cycle. Longer air paths create more resistance, so a result from a small sample bag is not enough for a large finished format. In a higher-volume operation, a small, repeatable difference in evacuation or sealing workflow can also become operationally meaningful across many cycles.
The Practical Choice
Choose diamond or dotted embossing after a small side-by-side trial, not from a universal ranking. Confirm the machine type, bag dimensions, food or non-food product, and required packing route. Then keep the approved pattern reference with the film specification and purchase order.
For buyers comparing multiple bag formats, VANTASE can help turn those sample results into a clearer vacuum packaging RFQ instead of treating a pattern name as the whole specification.
