The important difference between embossed and smooth vacuum bags is not appearance. It is how the bag works with the vacuum method of the machine.
An external-suction sealer usually needs a textured bag to keep an air path open to the mouth of the pouch. A chamber sealer evacuates the space around the whole pouch, so it can generally use smooth bags. Knowing which machine you have avoids the most common compatibility mistake before an order is placed.

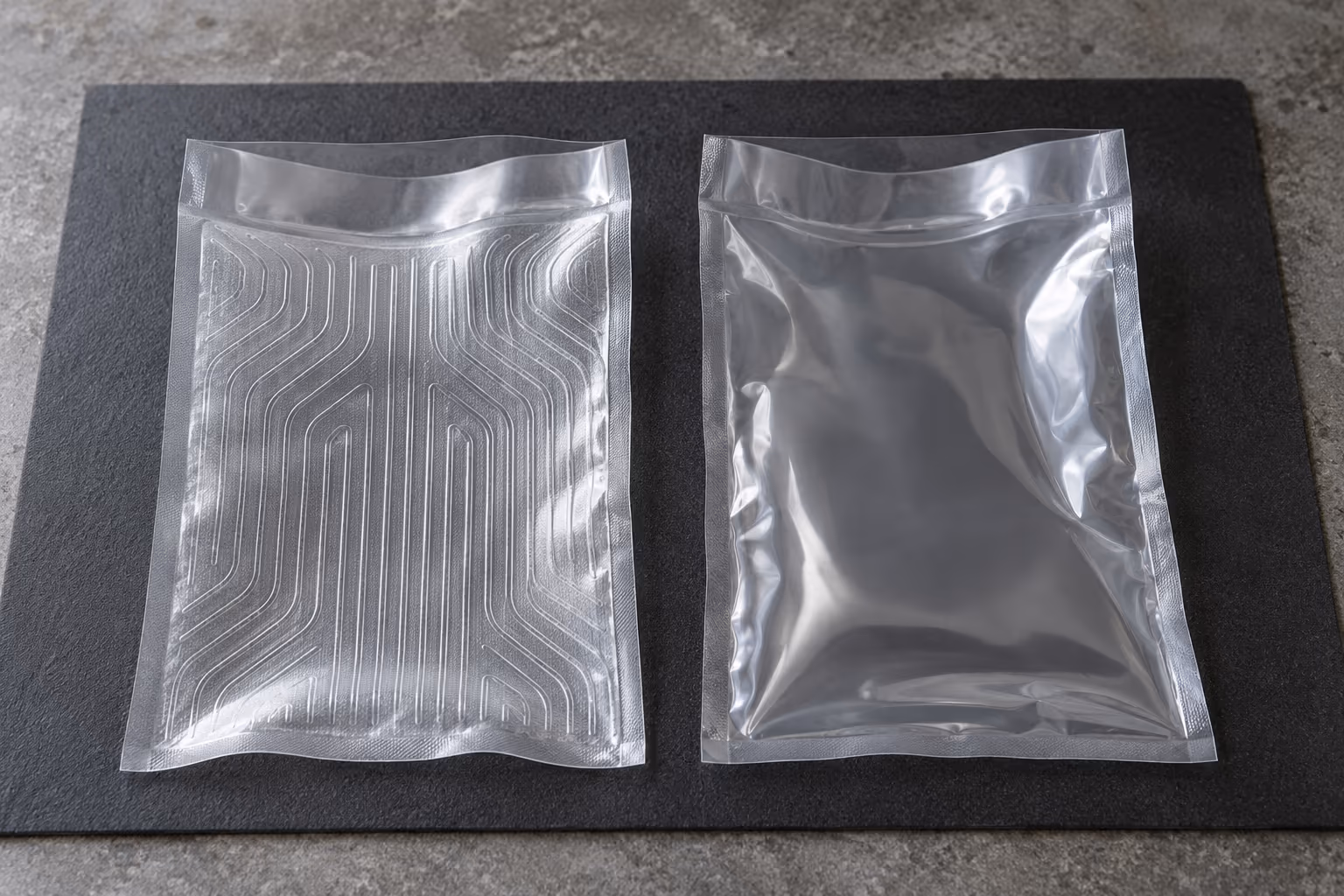

Embossed Bags: Texture With a Job to Do
Embossed vacuum bags have a repeated texture on one side, or within the bag structure. Diamond, grid, and dotted patterns are common. The texture creates channels that can remain open while an external machine pulls air from the bag opening.
Without a usable channel, smooth film surfaces may press together before air from the far end of the pouch reaches the nozzle. That is why an external machine is normally paired with embossed or otherwise channelled bags approved for that machine.
The pattern itself is only part of the specification. Channel consistency, the sealing margin, film structure, and bag size all affect day-to-day results. For the pattern comparison, see diamond vs dotted vacuum bag patterns.

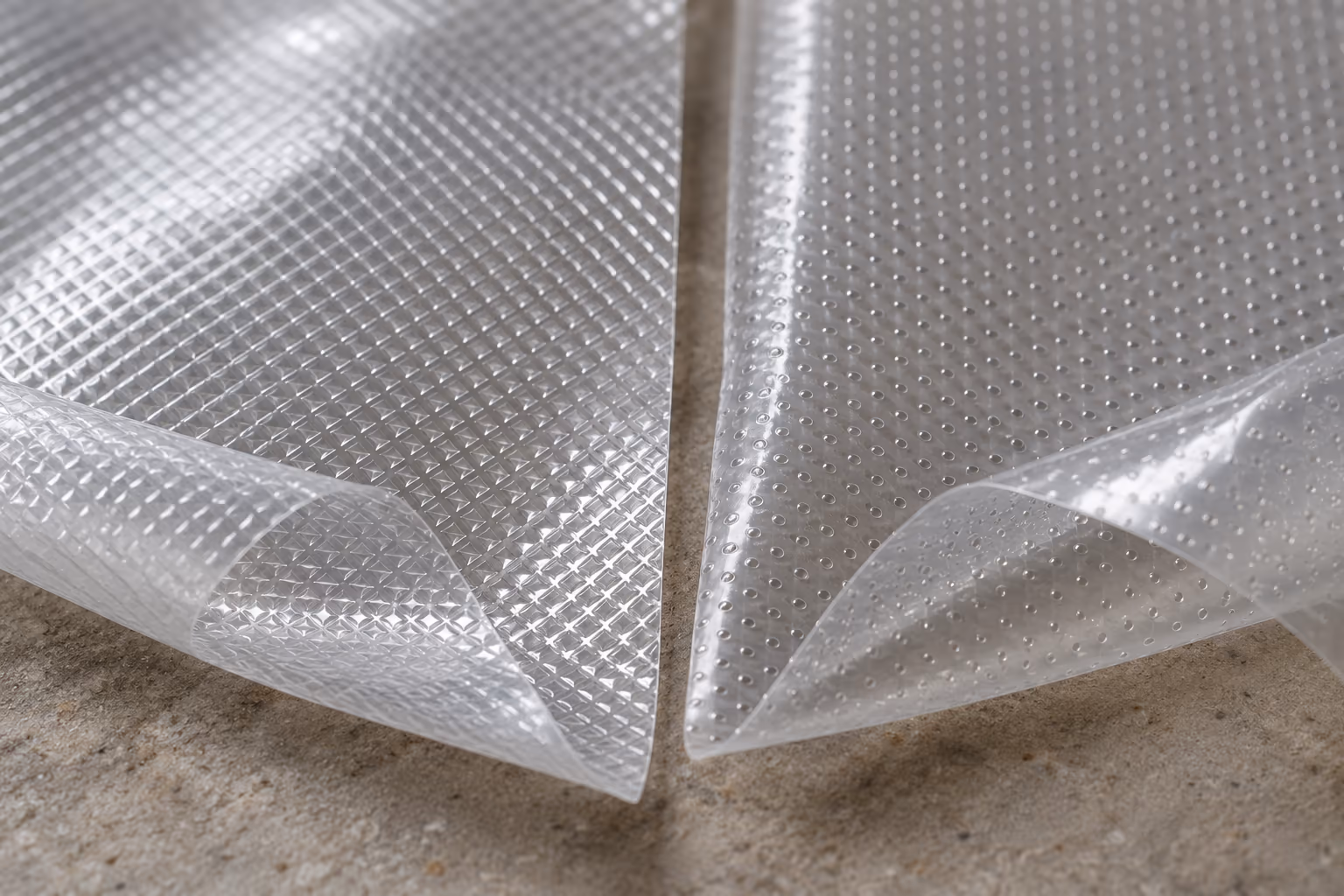

Pattern Types: Diamond, Grid, and Dotted
Three common embossed formats are worth recognising:
Diamond pattern. Diagonal cross-hatching forms diamond-shaped channels. It gives air more than one diagonal route toward the suction point and is widely supplied for external-sealer bags.
Grid or dot pattern. Perpendicular raised lines, repeated points, or a square grid form channels across the pouch. These formats are also common and may be preferred in particular supply markets or bag programmes.
Straight-line pattern. Parallel raised lines are used in some specialised formats where the expected air-flow direction is predictable.
The pattern name does not establish a performance ranking. A diamond, grid, or dotted bag can work well when the pattern is continuous, the film is suitable, and the pouch is run on a compatible machine. The geometry can matter more with a wide pouch, a long distance to the mouth, an off-centre suction point, or a slower evacuation cycle. Compare samples in those conditions rather than quoting a universal pressure difference between patterns.
For an external sealer, inspect the whole working path: the patterned area should let air travel toward the bag mouth, and the mouth itself should give the seal bar a clean, suitable surface. A deep texture is not automatically preferable if it makes the sealing margin difficult to control.
Material Thickness and Embossing
Embossing adds a forming step and must remain consistent across the working part of the pouch. A more flexible film can allow the texture to deform more readily under handling or sustained load; a heavier construction can hold the pattern differently and may need different sealing settings. The useful comparison is not a universal thickness threshold, but whether the channel remains open and the seal remains repeatable on the intended product and machine.
When buying embossed bags, check that the texture is consistent across the pouch surface. Look for areas that are visibly flattened, incomplete, or uneven, especially around the portion of the pouch through which air must travel. Include a real packing test as well: a visually consistent pattern still needs to evacuate and seal correctly in the actual process.
Smooth Bags: A Natural Fit for Chamber Machines
Smooth vacuum bags are flat on both sides. In a chamber machine, the entire pouch is inside the chamber while pressure falls around it. The bag does not depend on a channel running to an external nozzle in the same way, so smooth film can be used.
Smooth bags may be appropriate for a chamber operation, but that does not make every smooth bag suitable for every product or process. Confirm the pouch size, film structure, sealant layer, and any cooking, freezing, or food-contact requirements with the supplier and the machine documentation.
Chamber operators may use smooth pouches because they are widely available in standard formats, but embossed material can still be chosen when a customer requires a particular retail appearance or when the same pouch programme needs to serve more than one equipment type. The appropriate choice is the one that is qualified for the full programme, not the least textured option by default.
Match the Film to the Machine First
Use this as a starting point:
- External-suction sealer: select embossed or channelled bags that have been tested on the specific machine.
- Chamber sealer: smooth bags are commonly suitable; embossed bags may also run, but their texture is not needed for evacuation.
- Unsure of the machine type: check the manual, ask the equipment supplier, or run a controlled sample test before placing a bulk film order.
For a broader equipment comparison, read external vs chamber vacuum sealers.
Do Not Judge Film by Texture Alone
Embossing does not automatically mean a bag is thicker, stronger, or a better oxygen barrier. Those properties come from the selected materials and construction. A thin embossed pouch and a heavy-duty embossed pouch can behave very differently with sharp products, repeated handling, or a long storage route.
Give the supplier the product, expected bag size, sealing method, storage condition, and market. If barrier or puncture performance matters, request information for the actual pouch rather than treating the surface texture as proof. What vacuum sealer bags are made of gives a practical introduction to film layers.
Thickness is one input, but it should be read alongside the film construction and the intended use. A flexible pouch can be a good fit for a simple dry product, while a sharp, bone-in, or heavily handled product may need a different structure and a puncture-focused sample test. The same applies to a pouch used for freezing, cooking, or a long retail route: verify the actual application rather than making a claim from the surface pattern or a single gauge figure.
Rolls and Pre-Made Pouches
Textured rolls are widely used with external sealers because the operator can make a pouch length that fits the product. Pre-made embossed bags are useful when a consistent finished size is preferred.
Chamber operations often use smooth pre-made pouches, but product format and workflow still matter. A bag that runs well on a dry product may not be the best choice for a liquid, powder, sharp edge, or retail presentation.
Pre-made bags trade cutting flexibility for a repeatable pouch size and a factory-made format. Rolls give the operator more control over length but add a first-seal step before filling. Choose the format around the product range and the packing routine, then make that choice explicit in the purchase specification.
Cost, Storage, and Consistency
Embossing adds a forming step, so it can affect price and lead time. The actual difference varies with film structure, pattern, dimensions, order quantity, printing, and supplier; it is not a fixed premium that applies to every bag. For a chamber application, compare the total approved pouch cost and operating fit rather than only the price per bag.
Store embossed bags in their cartons or flat stacks, protected from unnecessary heat and sustained weight. A visibly flattened or distorted texture may affect the air path on an external machine. If an order will be stored for a long period, test a retained sample at the point of use instead of relying solely on the first delivery inspection.
A Simple Sample Test
Before committing to a larger order, test the intended bag with the actual machine and product:
- Fill and load the pouch as the operator normally would.
- Check that air evacuates without the bag mouth folding or the product entering the seal area.
- Inspect the seal after it has cooled.
- Keep samples through normal handling, storage, and transport where relevant.
This test is more useful than trying to infer compatibility from a generic product photograph. For specific external-machine questions, use the embossed bag compatibility guide.
